C006244_01_CR4100_QuickStart_Guide

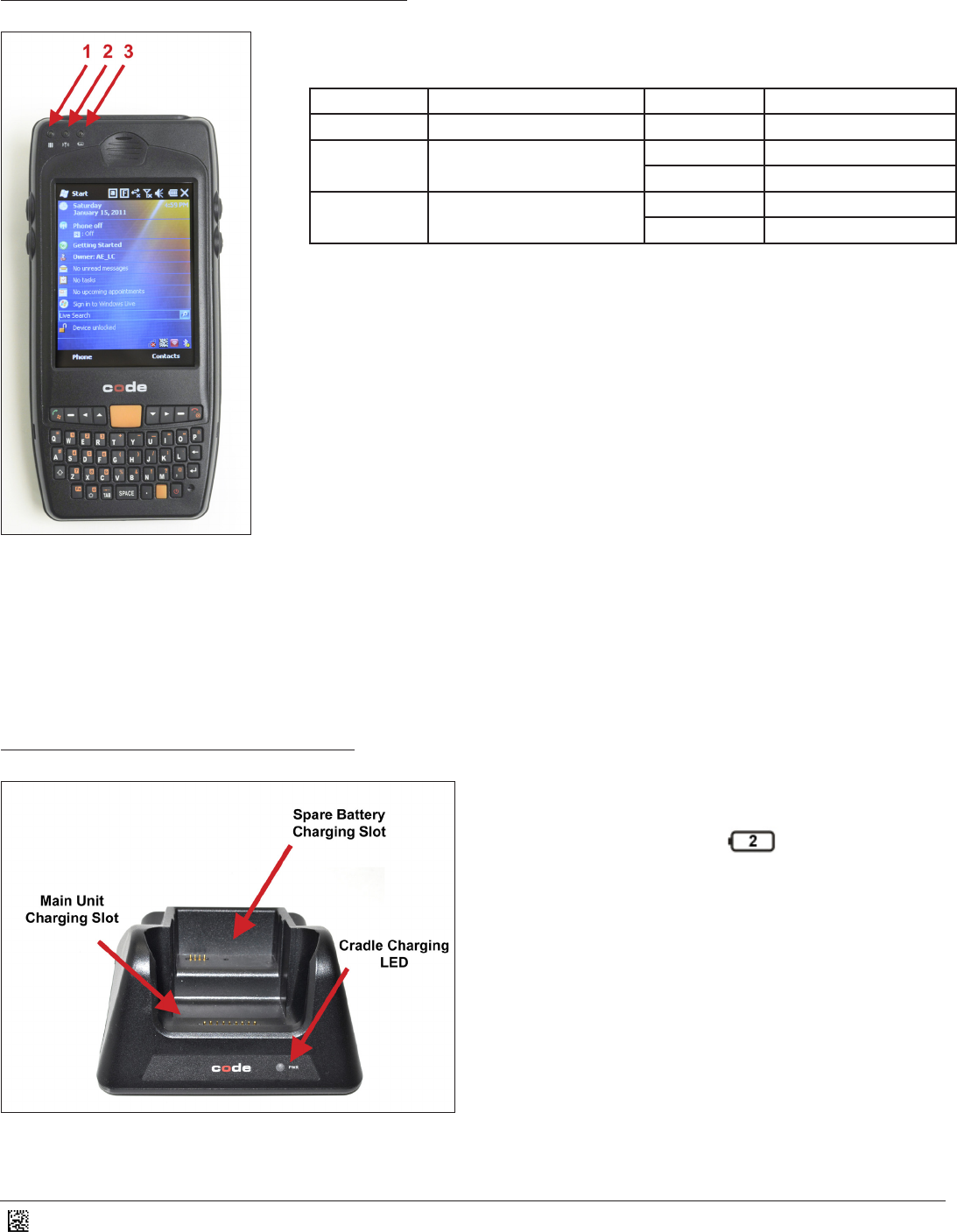

2.3 - LED Indicators on the Reader

LED Posion Descripon of LED LED Status LED Meaning

1st LED Good Read Indicator Flashes Green Good Read

2nd LED Wireless Indicator Flashes Red Weak Wireless Signal

Flashes Blue Strong Wireless Signal

3rd LED Charging Indicator for Baery

in the CR4100

Solid Red Charging

Solid Green Charging Complete

2.4 - LED Indicators on Cradle

Depending on the revision of Cradle you have received,

there is one of two possible descripons next to the LED

light. These could be PWR or a icon.

Regardless of which Cradle you have received, the LED

indicates the charging status of the spare baery being

charged in the back slot of the Cradle.

RED = Spare baery charging.

GREEN = Spare baery charging complete.
